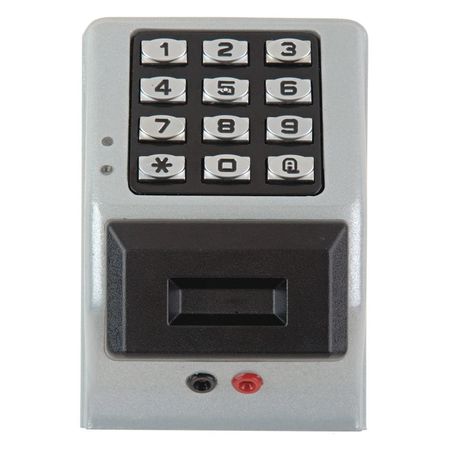

Alarm Lock PDK3000MS Digital Keypad

Digital keypad accepts most HID proximity cards and keyfobs. Users are individually programmed to use a card only, code only, or for the highest security - both card and code. 2000 user codes/cards: master, manager, supervisor & users. Prox card data can be added to software by uploading from keypad, by using AL-PRE or entering directly from computer using DL-Windows software. All metal pad, tamper and weather resistant. Access Keypad is surface mounted and provides weatherproof access control. Keypad also includes Prox Reader with PC Programming and Audit Trail, Switch Action (2) High-Current Rated 8A Relays for Entry, Alarm Zone Shunting or Lock Release By Real-Time Schedule. Made from cast Aluminum Housing. Depth 2-1/2", height 4-5/8 ", width 3-3/16". Input Voltage 10 to 28VAC/DC, output 2 SPDT, 8A form C Relays, Amps AC 55mA @ 12V/80mA @ 24V.
