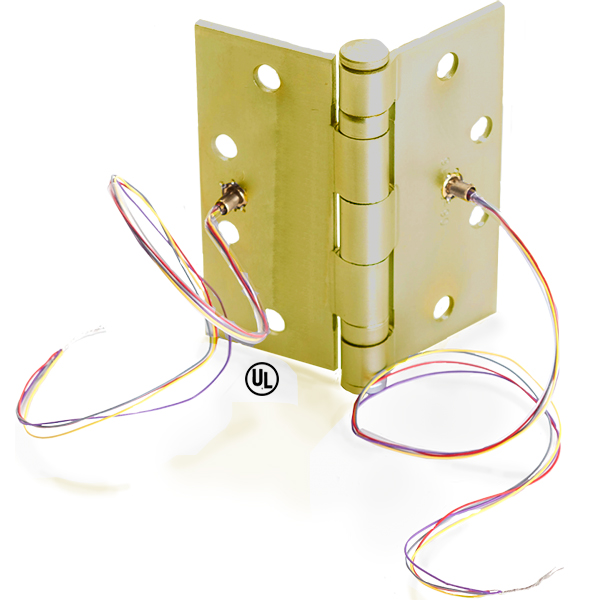

ACSI 1104 4.5 X 4.0 Electrical Hinge/Pivot
Item Code: ACS0008
For concealed low-voltage power transfers (4 wire, 28ga), Satin Brass finish
List Price: $224.00
Item Code: ACS0008
Wholesale Price:
Login or Create an Account to see your exclusive rate.
To see your exclusive rate, Login or Apply for an account
Access Hardware Supply is dedicated exclusively to serving the needs of industry professionals. If your company doesn’t have an account yet, just click below to apply.
APPLY
APPLY
Out of stock. Available for backorder. Contact your sales rep.
We are currently out of stock but you can backorder this item. Please contact your sales rep or call
Phone: 800-348-2263
Email: ahsweb@accesshardware.com
4.5" H x 4.0" W. Ball Bearing Hinge #1279. UL Listed with UL Fire Rating on steel and stainless steel hinges. All architectural finishes. Electrical specifications as follows: 28ga conductors, 12 inch wire lead length both sides, 3.5A continuous @ 50VAC/VDC, 16A pulse @ 50VAC/DC, 400msec maximum pulse-width, 10sec minimum off-time between pulses, 18ga conductors, 12 inch wire lead length both sides, 10A continuous @ 50VAC/VDC, 20A inrush @ 50VAC/DC for 4sec. Full mortise hinge, standard weight, 5 knuckle. Satin Brass finish.
Documentation (View & download PDFs)
Spec Sheet
ACSI 1100 Series Electric Hings, Pivots -ss
Installation Sheet
ACSI 1100 Series Concealed Electric Through-Wire Hinges
Select Hinges SL71 Safety Hinge
ACSI 1114,1116,1118 Hinge -is
ACSI 1104,1106,1108,1100-10,1100-12 Hinge -is
ACSI 1102 Pivot -is
ACSI 1100 Hinge -is
ACSI 1102 Hinge -is
Miscellaneous
ACSI 1100 Series UL Fire Rated-Misc
Price List
ACSI Price Book
ACSI Price Increase March 2022
Warranty
ACSI Warranty
