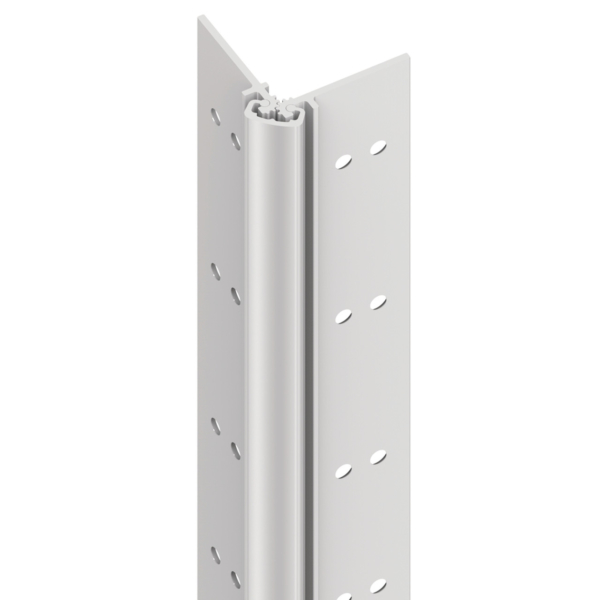

Ives 112XY US28 95″
Item Code: IVE0197
Geared continuous hinges are designed to last the life of a building by distributing the weight of a door along the entire length of its frame. The unique design reduces the high amount of stress normally associated at the top of the door and frame on butt hinge applications. Not only does this reduce hinge failure, it also keeps a door in constant alignment, eliminating the chance of door sag. These characteristics make continuous hinges suitable for high-use and high-traffic doors. This particular lock is a heavy duty, full mortise-narrow frame leaf, narrow door leaf, 95" in length, finished in Satin aluminum.
List Price: $443.60
Item Code: IVE0197
Wholesale Price:
Login or Create an Account to see your exclusive rate.
To see your exclusive rate, Login or Apply for an account
Access Hardware Supply is dedicated exclusively to serving the needs of industry professionals. If your company doesn’t have an account yet, just click below to apply.
APPLY
APPLY
The geared continuous hinge has no pin. Instead, these hinges utilize a single gear section for the leaf and a separate gear section for the frame side of the door. The two are held in place by a full length cover channel and rotate on a series of bearings. All of these hinges are certified to ANSI 156.26, Grade 1 and UL10C (90 minute), and offers support on various applications, including swing clear, wide throw and electrified. Designed to keep the door in constant alignment and eliminate door sag. Features a cover channel which holds together two separate gear sections, providing a visually pleasing solution. Also, eliminates space between the hinges, preventing fingers from being pinched. Available in full mortise, full surface, and half surface hinges. They can be cut to length during installation.
