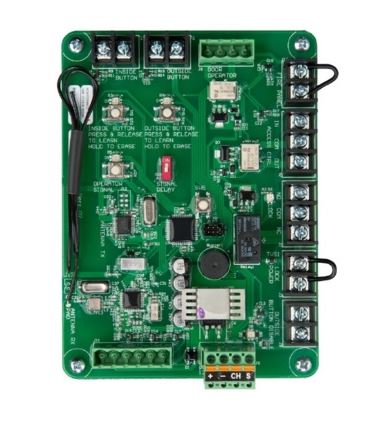

Norton ADA1028W Wireless Interface Module
The Wireless Interface Module ADA1028W meets the need of a broader set of applications that requires simple and seamless door control through a variety of devices and systems. Designed to interface with all versions of the 5800 ADAEZ Low Energy Operator, actuators, systems, and wired or ADAEZ wireless push buttons. Mounts simply on the door with ease of installation. No voltage or low voltage power to opening. Patented Auto-Tune ensures safety and compliance. Characterized by it's flexibility adjustable open/closing force, controls doors up to 48' wide and 250 lbs. Functions like ordinary door closers when used manually. The Wireless Interface Module can be ordered separately; specify with part number ADA1028W.
APPLY
Features regenerative drive or continuous duty operation, a door opening of 95° maximum and push and pull side mounting. Non-handed. Incorporates the Push-and-Go (ADA1015P Kit must be connected) and Power close (ADA1015P Kit must be connected) features. Features integral RF receiver, shock absorbing arm, 693T (black) and 689 (aluminum) covers standard. Has a 24 VDC input port. Includes a ADA1015P hardware kit and incorporates a built-in ON/OFF Switch, as well as an auxiliary activation input port. Furthermore, an Executive Mode feature (can be used with Hand Held RF Transmitter ADA1031) is available. Reliable with Grade 1- heavy-duty, commercial design; protection from high-wind and abusive environments. Built-in battery backup allows use during power failure. Brushless DC motor/gearbox tested 10+ million cycles. Latch Assist ensures dependable door latching.
Documentation (View & download PDFs)
Specification Sheet
Norton 5800 Series Low Energy Sales Sheet
Installation Sheet
Norton 5800 ADAEZ Pro -is
Norton ADAEZ Wireless Interface Module -is
Brochure
Norton 5800 Series ADAEZ Complete Brochure
LEED Statement
Norton LEED Statement
Catalog
Norton 5800 Series1028W Catalog
Price List
Norton & Rixson Price Book September 2021
Warranty
Norton Warranty
