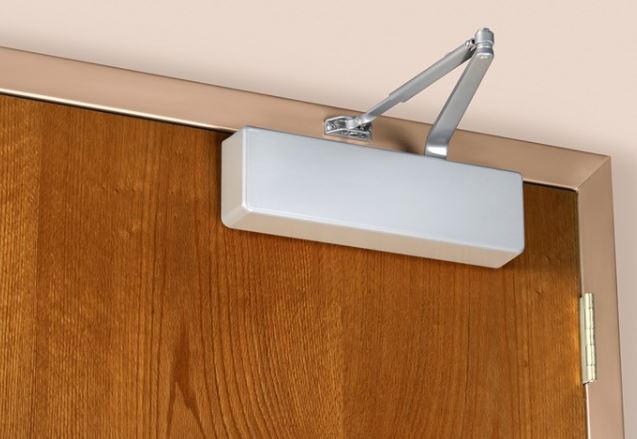

Norton CPS7500 689 Door Closer
Item Code: NOR0009
The 7500 Series Door Closer offers customers the ideal combination of superior performance, strength and quality. Ideal for interior or exterior doors in facilities that demand reliability, including classrooms, offices, main entrance doors, and hospitals. The CPS Door Closer has a built-in door stop and holder effective at one point selected at installation, from 85°-110° in five-degree increments. The door stop mechanism is reversible and has a buffer spring that engages prior to the dead stop feature, reducing shock loads to the door and frame assembly. The door stop mechanism will be attached to the soffit plate. Hold open mechanism shall have engage/disengage selection actuated by thumbturn. Parallel installation will occur for door closers using a forged rigid steel main arm and secondary arm. Aluminum Finish.
List Price: $1,192.00
Item Code: NOR0009
Wholesale Price:
Login or Create an Account to see your exclusive rate.
To see your exclusive rate, Login or Apply for an account
Access Hardware Supply is dedicated exclusively to serving the needs of industry professionals. If your company doesn’t have an account yet, just click below to apply.
APPLY
APPLY
Out of stock. Available for backorder. Contact your sales rep.
We are currently out of stock but you can backorder this item. Please contact your sales rep or call
Phone: 800-348-2263
Email: [email protected]
Features adjustable spring sizes 1 through 6 (ADA Compliant), Tri-Style® packaging for regular, top jamb or parallel arm mounting. Exceeds 25 million cycles, non-handed and possesses a cast aluminum body. Characterized by a rack-and-pinion design: 2-3/16" (56mm) projection; 1-1/2" (38mm) diameter piston; 5/8" (16mm) diameter pinion journals; and staked valves. Also features, standard, separate and independent, latch, sweep and backcheck intensity valves, backcheck positioning valve, NorGlide® fluid, and a molded plastic cover. All standard arm applications allow doors to swing 180° with conditions permitting, self-drilling screws and slide tracks of push or pull side mounting. Certifications include ANSI/BHMA A156.4, Grade 1; ANSI/BHMA standard A117.1; UL listed; UL 10c compliant for positive pressure. Listed by the New York City Materials and Equipment Acceptance division.
Documentation (View & download PDFs)
Spec Sheet
Norton 7500 Series Door Closer -ss
Installation Sheet
Norton 7500 CPS Series -is
Norton 7500 CPS Series Door Closers -is
Norton 7500 CPS Series Supplemental Sheet Assembly -is
Norton 7500 Series CPS Hold Open Non-handed Closer -is
LEED Statement
Norton LEED Statement
Price List
Norton & Rixson Price Book September 2021
Warranty
Norton Warranty
