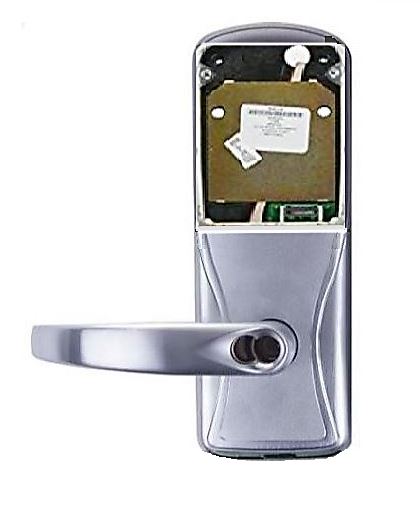

Schlage AD200CY50LLL SPA626 JD LH Electronic Lock
Item Code: SCH1079
The AD Series locks were designed to be adaptable, allowing upgrades to be made to new technologies without taking the lock off the door. The AD-200 offline locks can be manually programmed, managed by Schlage Express or with an offline system from select Software Alliance members. The AD-200 is available in cylindrical, mortise, mortise deadbolt and exit trim chassis options and typically features a credential reader, although in this case does not include a reader, and access control sensors for simplified installation. It is compatible with a wide range of credential options including PIN, magnetic stripe, proximity (125 kHz) and smart (13.56 MHz) credentials; dual authentication card + PIN readers are available for extra security. This particular office lock excludes the reader and the 6-pin (FSIC) cylinder. This lock is left handed, complete with a Satin chrome finish and Sparta (SPA) lever.
List Price: $1,858.00
Item Code: SCH1079
Wholesale Price:
Login or Create an Account to see your exclusive rate.
To see your exclusive rate, Login or Apply for an account
Access Hardware Supply is dedicated exclusively to serving the needs of industry professionals. If your company doesn’t have an account yet, just click below to apply.
APPLY
APPLY
Out of stock. Available for backorder. Contact your sales rep.
We are currently out of stock but you can backorder this item. Please contact your sales rep or call
Phone: 800-348-2263
Email: ahsweb@accesshardware.com
Features security thats more intelligent and convenient than the traditional mechanical locking devices. Audit trail reports that allow you to track usage and events. Updates users and access rights at the lock using the keypad or handheld device. The ability to upgrade to a networked solution without removing the lock from the door, is a great feature. The AD-200 is available in cylindrical, mortise, mortise deadbolt and exit trim. Compatible with major brands of master key systems and exit devices. Hardwired remote push button release capability and programmable option for lighted occupancy indication. Available on privacy function locks manufactured after May 2019 with firmware version AD.A.126 or higher. Certified with the following: AANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL10C, FCC Part 15, ADA, RoHS, FL12400, FL1591, FL13013 and FL14482. This applies to cylindrical and mortise chassis only.
Documentation (View & download PDFs)
Installation Sheet
Schlage AD-Series for Cylindrical -is
Schlage AD Series and CO Series Battery Kit -is
Data Sheet
Schlage AD-200 Data Sheet
Schlage Cylinder and Lever Compatibility Data Sheet
LEED Statement
Schlage (Allegion) LEED Statement
Price List
Schlage Commercial PB9 Price List
