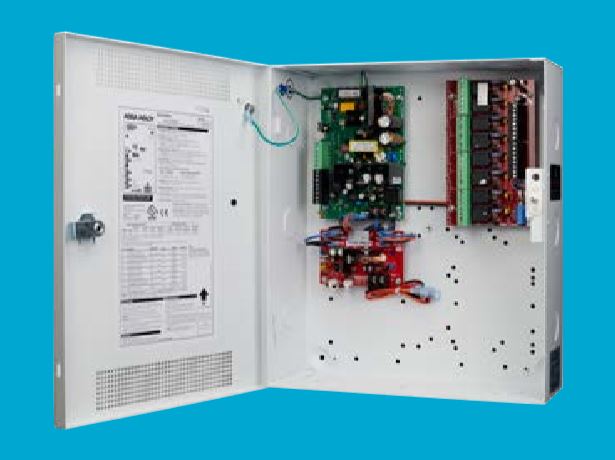

Securitron AQL104-E1 Intelligent Power System
Item Code: SEC0017
The AQL104 Series of switching power supplies are single voltage, UL listed plus multi-voltage and network monitoring ready. These units also include a dedicated fast battery charger. They provide 10 Amp @ 24 VDC and are expandable up to 16 outputs. E1 enclosure has four module spaces.
List Price: $615.85
Item Code: SEC0017
Wholesale Price:
Login or Create an Account to see your exclusive rate.
To see your exclusive rate, Login or Apply for an account
Access Hardware Supply is dedicated exclusively to serving the needs of industry professionals. If your company doesn’t have an account yet, just click below to apply.
APPLY
APPLY
Features low battery cutoff which protects batteries from deep discharge, dedicated fast charger which prolongs battery life, and enhanced surge immunity for input/output protection. LockSafe keeps locks cooler by providing a separate, dedicated battery charging circuit. OutSmart technology provides dual-color LED visual notification which prevents applying incorrect voltages to locking devices: (Green: 12 V | Blue: 24 V). Auxiliary is Class 2, power limited and mix and match UL Listing. Instant auto-switch to battery on AC loss, expandable up to 16 outputs in the standard enclosure and multi-voltage with Securitron B100. Integrated Fire Alarm Interface (FAI) allows main output shutdown or disconnect on a per output basis when using an R8 output module. Network is ready with the Netlink module option.
Documentation (View & download PDFs)
Specification Sheet
Securitron AQL Series Intelligent Power System -ss
Securitron B100 Secondary Voltage Module -ss
Installation Sheet
Securitron AQL Series Intelligent Power Systems -is
Securitron B100 Secondary Voltage Module Quick Start Guide
Price List
Securitron Price List
Warranty
Securitron Warranty
