Securitron AQL6-R8E1 Intelligent Power System
Item Code: SEC0008

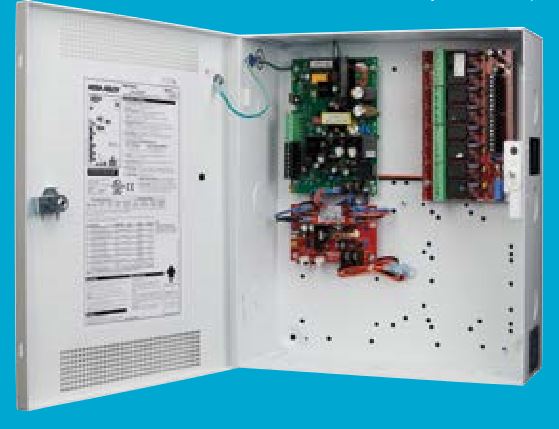

The Securitron AQL6 Series of switching power supplies are dual voltage, UL listed plus multi-voltage and network monitoring ready. These units are field selectable with a dedicated fast battery charger. They provide 6 Amp @ 12 or 24 VDC and are expandable up to 16 outputs.The E1 enclosure has four module spaces and R8 takes up two of those module spaces.
List Price: $736.00
Item Code: SEC0008
Wholesale Price:
Login or Create an Account to see your exclusive rate.
To see your exclusive rate, Login or Apply for an account
Access Hardware Supply is dedicated exclusively to serving the needs of industry professionals. If your company doesn’t have an account yet, just click below to apply.
APPLY
APPLY
Features low battery cutoff which protects batteries from deep discharge, dedicated fast charger which prolongs battery life, and enhanced surge immunity for input/output protection. LockSafe maintains a lower temperature by providing a separate, dedicated battery charging circuit. OutSmart technology provides dual-color LED visual notification which prevents applying incorrect voltages to the locking devices: (Green: 12 V | Blue: 24 V). Auxiliary output is Class 2, power limited and mix and match UL listing. Instant auto-switch to battery on AC loss, expandable up to 16 outputs in the standard enclosure and multi-voltage with Securitron B100 Module. Integrated Fire Alarm Interface (FAI) allows main output shutdown or disconnect on a per output basis when using an R8 output module. Network ready with optional Netlink module.
Documentation (View & download PDFs)
Installation Sheet
Securitron AQL Series PWS -is
LEED Statement
Securitron LEED Statement
Miscellaneous
Securitron AQL Series Product Catalog
Securitron AQL Series PWS Product Overview
Securitron AQL6 Quick Start Guide
Price List
Securitron Price List
Warranty
Securitron Warranty
